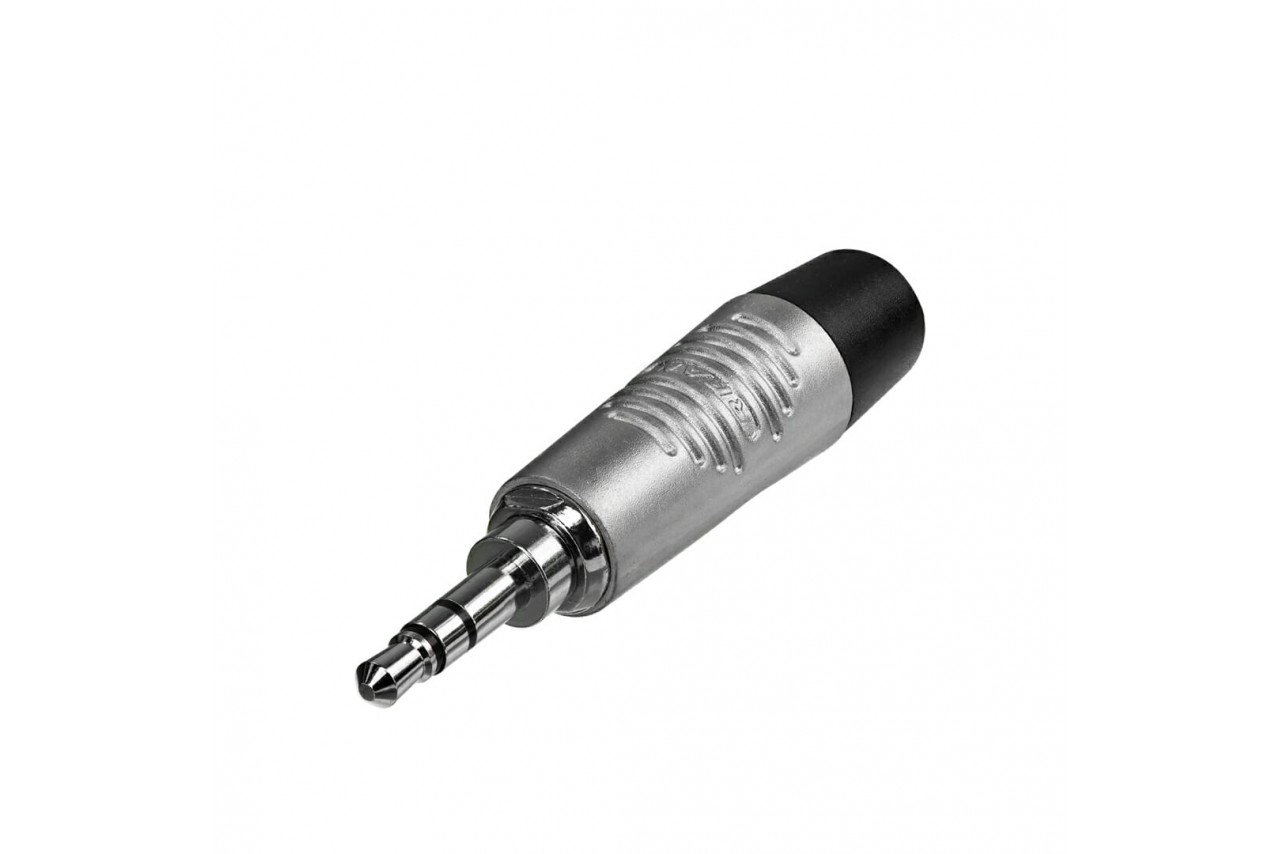

RTP3C 10pcs. /Pack Stereo 3 pole - REAN 3.5mm stereo plug, nickel shell, nickel plated contacts
Features & Benefits
- Ergonomic space saving design
- Full metal rugged shell, reliable quality
- Easy to assemble and use
- Optional mono 2 pole and stereo 3 pole
- Precision machined one piece contacts – no rivets
Technical Information
| + Product |
|---|
| Title | RTP3C |
|---|
| Connection Type | Plug |
|---|
| + Electrical |
|---|
| Contact Resistance | 10 mΩ |
|---|
| Insulation Resistance | >200 mΩ (Initial) |
|---|
| Dielectric Strength | 500V dc 50HZ |
|---|
| + Mechanical |
|---|
| Insertion and Withdrawal Force | ≤ 60 N |
|---|
| Lifetime | >1,000 Mating Cycles |
|---|
| Cable O.D. | 2 - 4 mm |
|---|
| Wiresize | 0.24 mm² |
|---|
| Wiresize | 24 AWG |
|---|
| + Material |
|---|
| Sleeve Assembly | Brass |
|---|
| Sleeve | Brass |
|---|
| Housing | Zinc |
|---|
| Sleeve Assembly | Nickel Plating |
|---|
| Sleeve | Nickel Plating |
|---|
| Housing | Nickel Plating |
|---|
