₱4,900.00
The MZ-C2 is a wall-mounted volume controller and source selector for the MZ series zone distribution amplifiers. The MZ-C2 allows the installer to select which zones the volume control is assigned to, and has a handy quick illuminated mute option to...
Availability: 2-3 Days
- Brand: HH Electronics

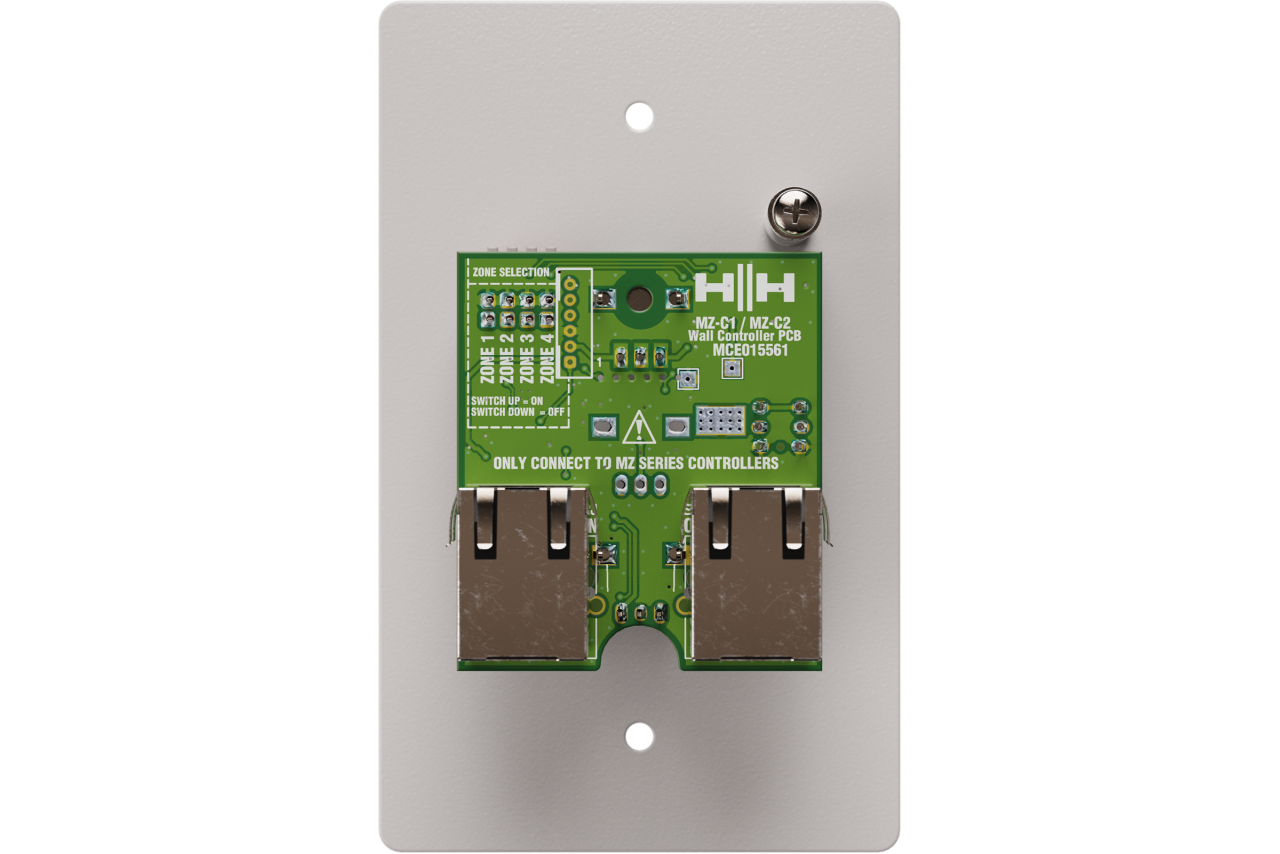

The MZ-C2 is a wall-mounted volume controller and source selector for the MZ series zone distribution amplifiers. The MZ-C2 allows the installer to select which zones the volume control is assigned to, and has a handy quick illuminated mute option to avoid moving the volume control. Front mounted source selector control allows the user to select which input is routed to the selected zone/s. Connected using standard Cat5 cable, installation is quick and easy.
MZ-C2-US-WH is finished in elegant white and fits a standard USA sized J box. Black version available subject to MOQ (MZ-C2-US-BK)
| SPECIFICATIONS | |
|---|---|
| System Type | Wall volume controller with source select |
| Input Connector | RJ45 LAN connector for connection to zone amplifier (standard CAT5e cable) |
| Output Connector | RJ45 LAN connector to connect other wall controllers in daisy chain (standard CAT5e cable) |
| Controls | Volume and source control; mute switch; zone select DIP switch |
| Mounting Depth | 48mm minimum depth required |
| Dimensions | |
|---|---|
| Unit Dimensions (Hwd) | 114 x 70 x 44 mm (4.5" x 2.8" x 1.7") |
| Unit Weight | 0.147kg, 0.3lbs |
| Carton Dimensions (Hwd) | 165 x 475 x 255 mm (6.5" x 18.7" x 10"), 12pcs multipack |
| Packed Weight | 4.5kg, 9.9lbs, 12pcs multipack |
