₱310,000.00
JBL VRX918SP 18 in. High Power Powered Flying Subwoofer The VRX918SP is a powered, suspendable subwoofer system containing a 2268FF neodymium magnet, patented Differential Drive®, 18" woofer in a front-loaded, vented enclosure. The VRX918SP wa...
Availability: 2-3 Days
- Brand: JBL
JBL VRX918SP
18 in. High Power Powered Flying Subwoofer

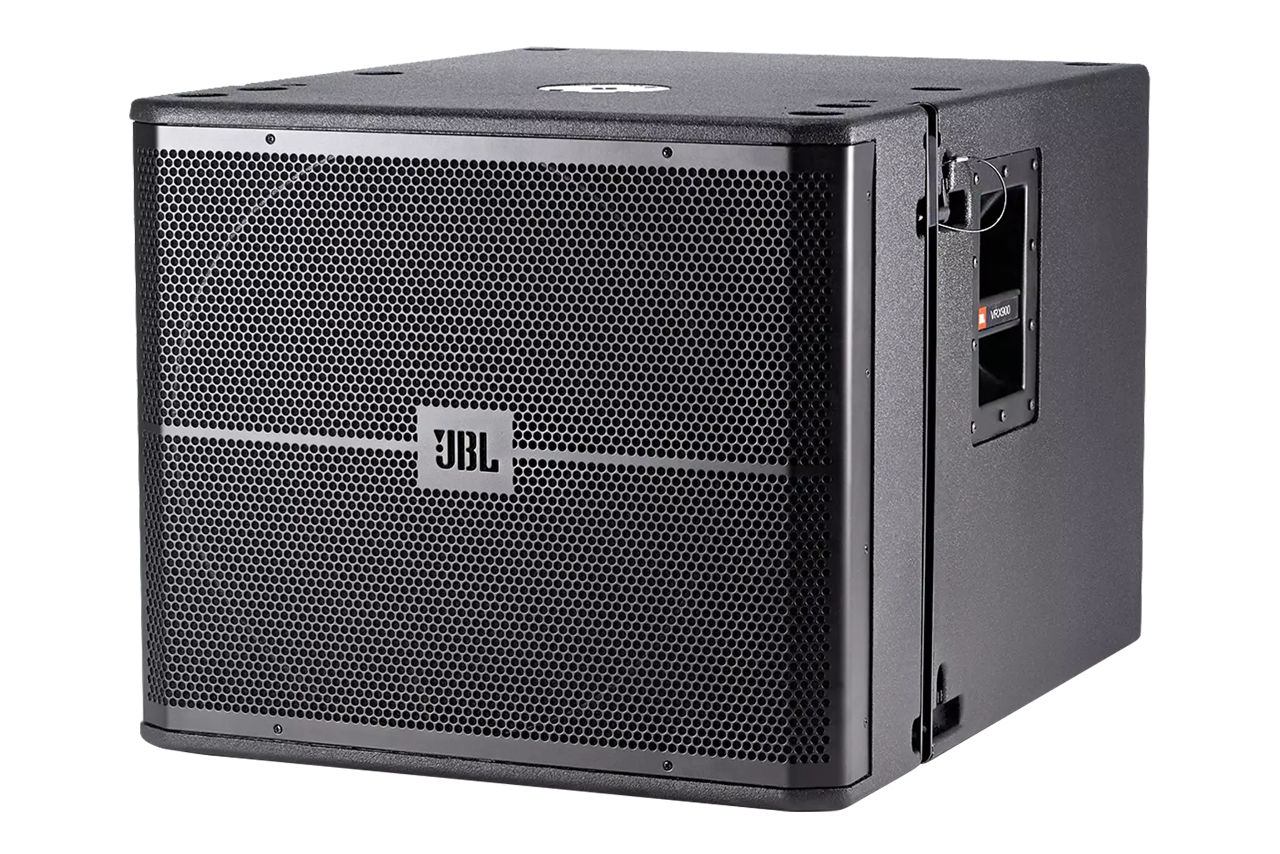

The VRX918SP is a powered, suspendable subwoofer system containing a 2268FF neodymium magnet, patented Differential Drive®, 18" woofer in a front-loaded, vented enclosure. The VRX918SP was designed specifically for use in arrays with the VRX932LAP Line Array speaker and VRX-AF Array Frame. In addition, it may also be used in arrays consisting entirely of VRX918SP subwoofers.
KEY FEATURES
- Built-in JBL DrivePack® DPC-2 amplifier module designed by Crown provides 1500 Watts of peak power. DSP based resident input module provides system optimization, EQ and crossover functionality.
- 18 inch, 2268FF dual voice coil, neodymium magnet Differential Drive® woofer for high-power capacity and lightweight.
- Integral rigging hardware for simple connection of enclosures and optional array frame.
- 20 mm threaded pole socket for solid, secure satellite speaker mounting.
- Large port area for reduced distortion.
- DSP-based resident input module provides system optimization, EQ, and crossover functionality.
APPLICATIONS:
- Music playback and sound reinforcement.
- Entertainers, corporate A/V professionals and sound system hire companies.
- Permanent Installation.
Equally at home in ground stacked applications, the VRX918SP is equipped with a top-mounted, threaded, 20 mm socket that can receive the optional SS4-BK pole. This adjustable height pole can be used to mount speakers equipped with standard 36 mm pole sockets and weighing up to 50 kg (100 lb). The threaded socket minimizes buzzing and rattling and assures that the pole will be secure and straight.

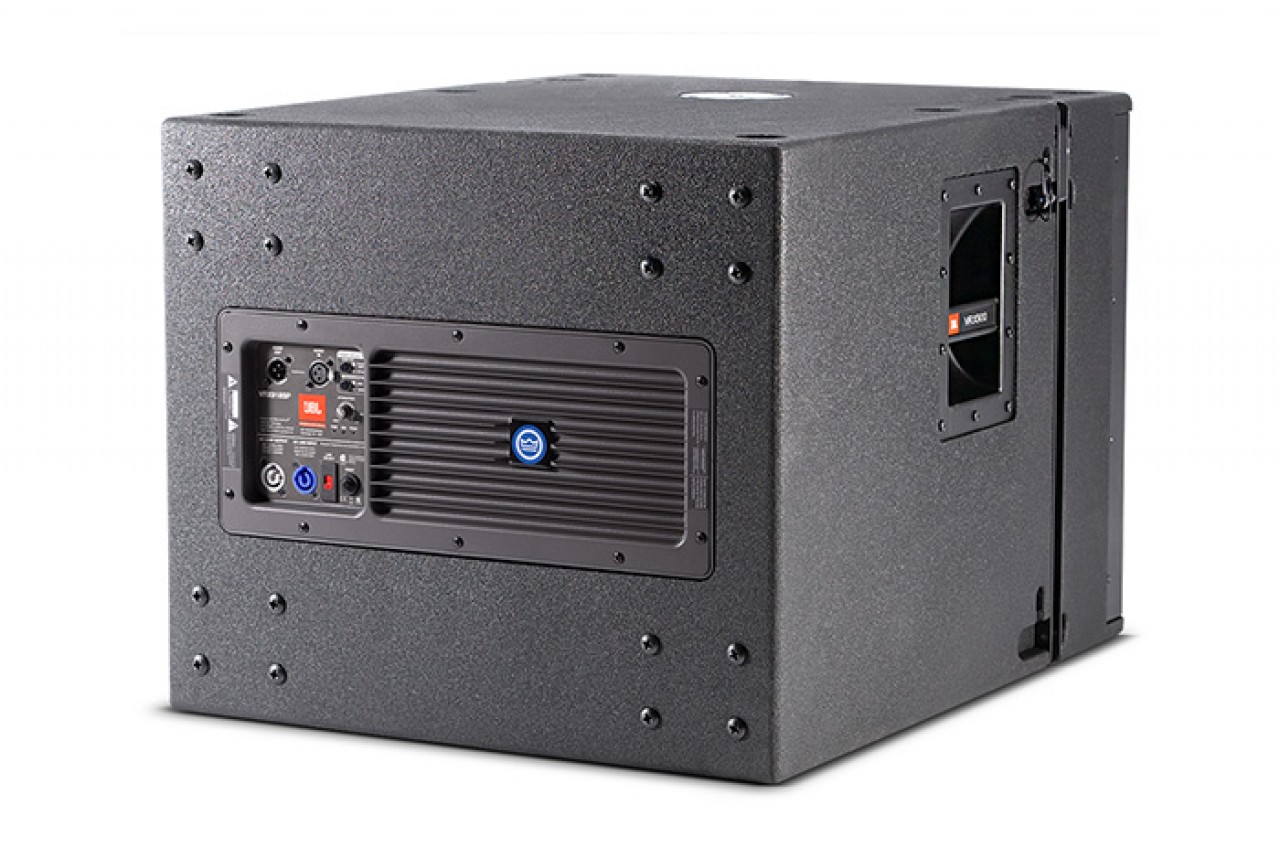

The enclosure is constructed of top quality birch plywood, coated in JBL’s rugged DuraFlex™ finish and is heavily braced to maximize low-frequency performance. The attractive CNCmachined, 16-gauge steel grille is internally lined with acoustically transparent foam to provide additional driver protection and give a very professional appearance. The rear of the enclosure is fitted with T-nuts which may be used to attach the optional WK-4S caster kit.
| SPEC VRX918SP | |
|---|---|
| Power Rating: | 1500 Watts Peak LF: Dual-Bridged Technology™, Class D |
| Frequency Range (-10 dB) | 31 Hz - 220 Hz |
| Frequency Response (±3 dB): | 34 Hz - 220 Hz |
| Maximum Peak Output: | 126 dB SPL at 1m |
| LF Driver: | 1 x JBL 2268FF 457 mm (18 in) dual voice coil Differential Drive® woofer with neodymium-magnet |
| Bandpass Nominal Impedance: | LF: 2 x 2 ohms |
| DPC-2 Internal Amplification Output (at nominal load): | 1500 Watts Peak, 750 Watts Continuous |
| DPC-2 Output as (Continuous IEC shaped pink noise into rated load impedance): | LF: 750 Watts |
| DPC-2 Output Section: | LF: Dual-Bridged Technology™, Class D |
| Audio Input Connector: | XLR with loop through |
| User Controls: | Input Attenuator (0-16 dB) Selectable 80 Hz or 120 Hz Low Pass 80 Hz High-Pass enable/disable for XLR loop thru. |
| Signal Processing: | DSP based, resident in Input Module |
| System Management: | DSP based limiters for mechanical and thermal protection. |
| AC Power Operating Range: | 90-132 VAC or 216-264 VAC, 50/60Hz |
| AC Line Voltage: | User selectable: 120V/240V (-15%, +10%) |
| AC Input Connector: | Neutrik PowerCon (NAC 3MPA) |
| AC Loop Through Connector: | Neutrik PowerCon (NAC 3MPB) |
| AC Current Requirements: | 6A per system at 120V, 3A per system at 240V |
| Enclosure: | 18 mm birch plywood. |
| Suspension / Mounting: | Optional VRX-AF line-array frame kit or 10 mm forged eyebolts |
| Finish: | Black DuraFlex™ finish |
| Grille: | 508 mm x 597 mm x 749 mm / (20.0 in x 23.5 in x 29.5 in) |
| Shipping Info | |
|---|---|
| Dimensions (H x W x D): | 18 mm birch plywood. |
| Net Weight: | 38.5 kg (85 lb). |
