₱110.00
3 pole male XLR receptacle with solder lugs + Product Title: RC3MDL Connection Type: XLR Gender: male + Electrical Insulation resistance: >1 ...
Availability: In Stock
- Brand: REAN

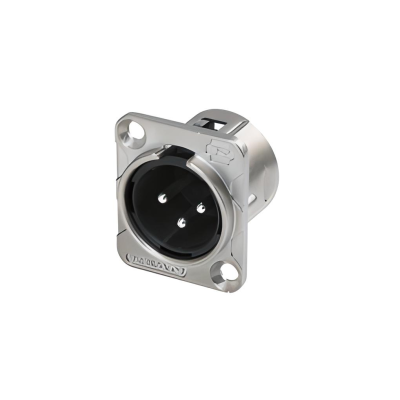

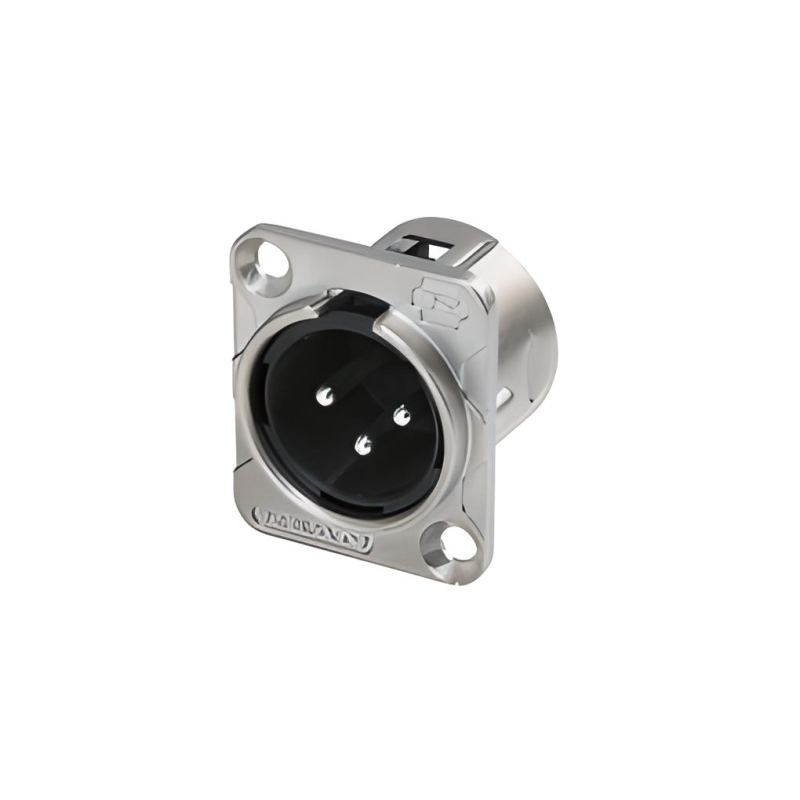

3 pole male XLR receptacle with solder lugs
| + Product | |
|---|---|
| Title: | RC3MDL |
| Connection Type: | XLR |
| Gender: | male |
| + Electrical | |
|---|---|
| Insulation resistance: | >1 GΩ |
| Contact resistance: | ≤ 5 mΩ |
| Rated Current: | 10 A |
| + Mechanical | |
|---|---|
| Lifetime: | > 1,000 Mating Cycles |
| Insertion / Withdrawal Force: | ≤ 20 N / ≤ 20 N |
| + Material | |
|---|---|
| Housing: | Zinc |
| Male Insert: | PA6+30%GF |
| Pin: | Brass |
| Ground Contact: | Bronze |
| Housing: | Nickel Plating |
| Pin: | Tin and Cer |
| Ground Contact: | Tin and Cer |
