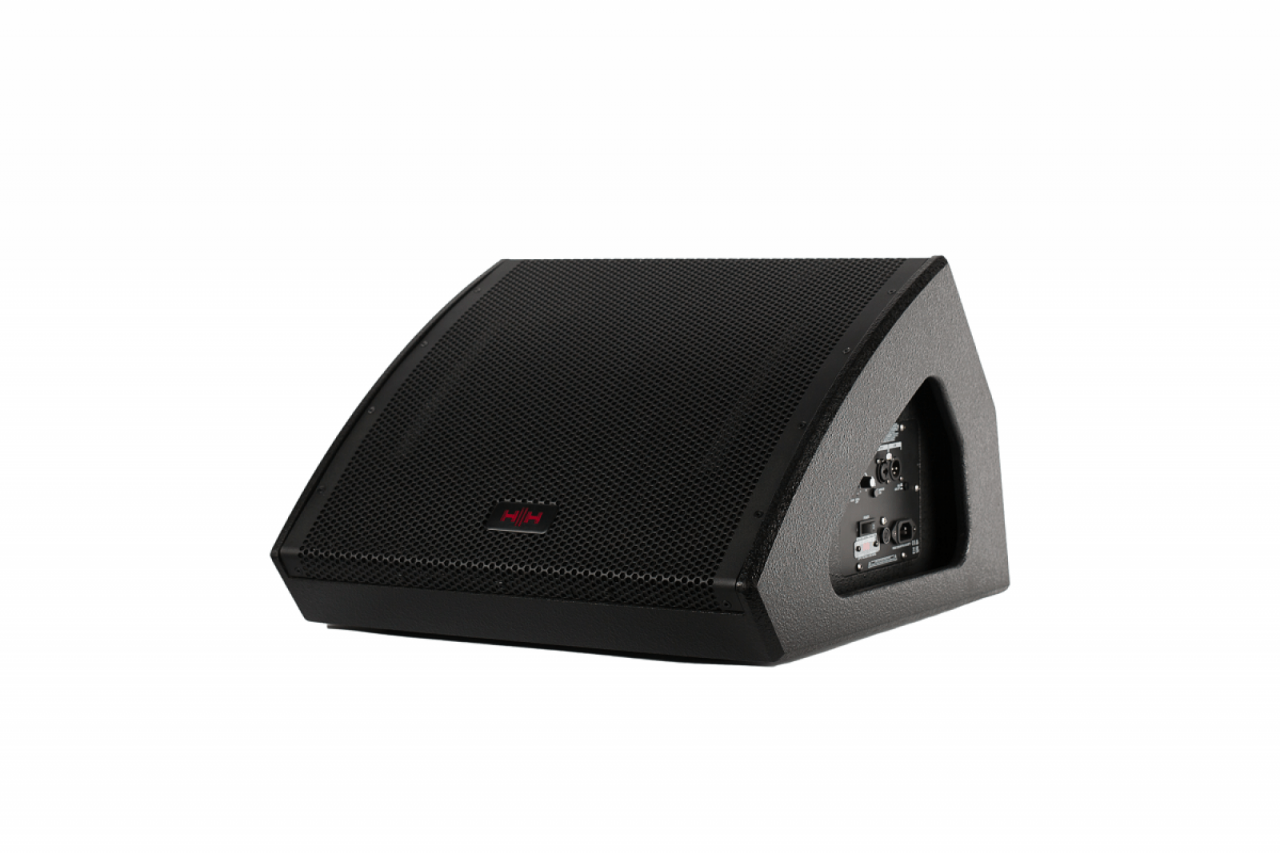

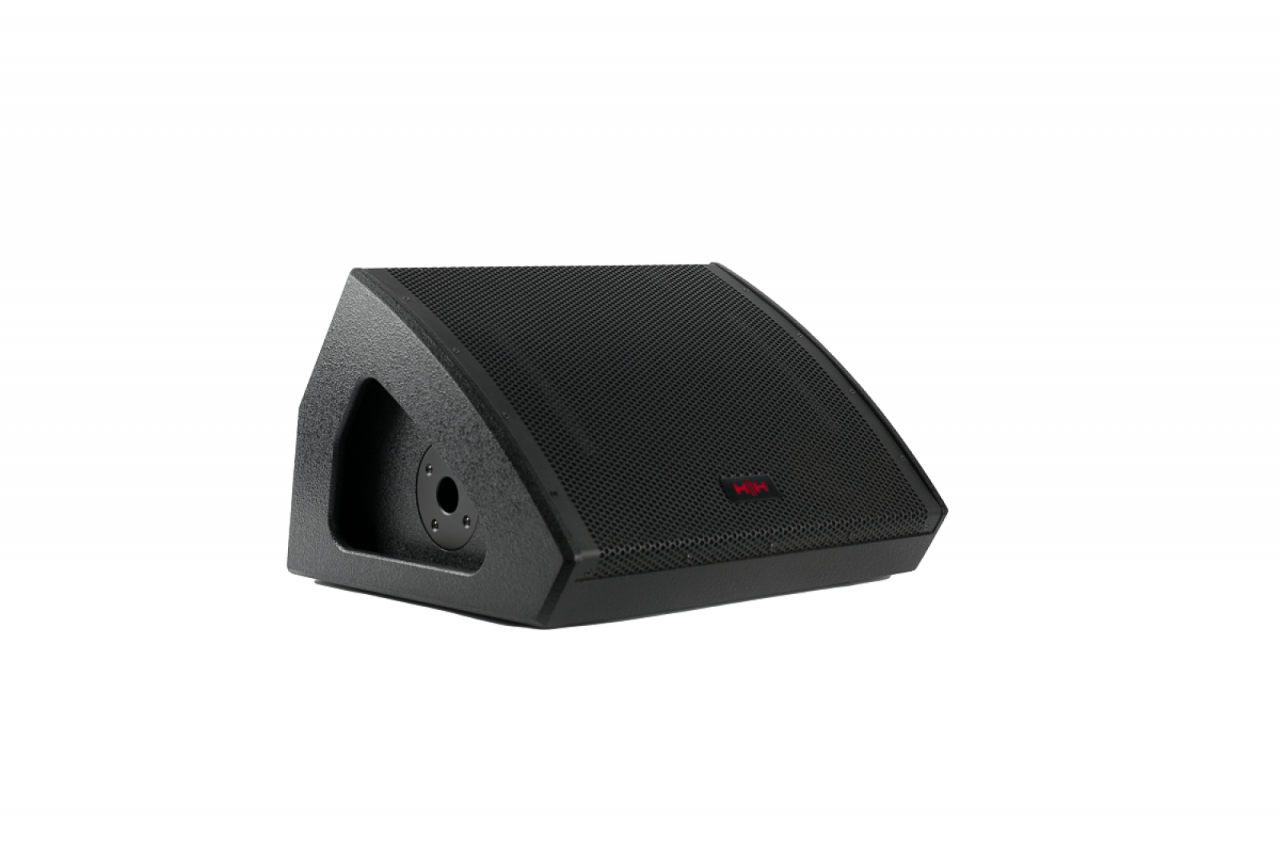

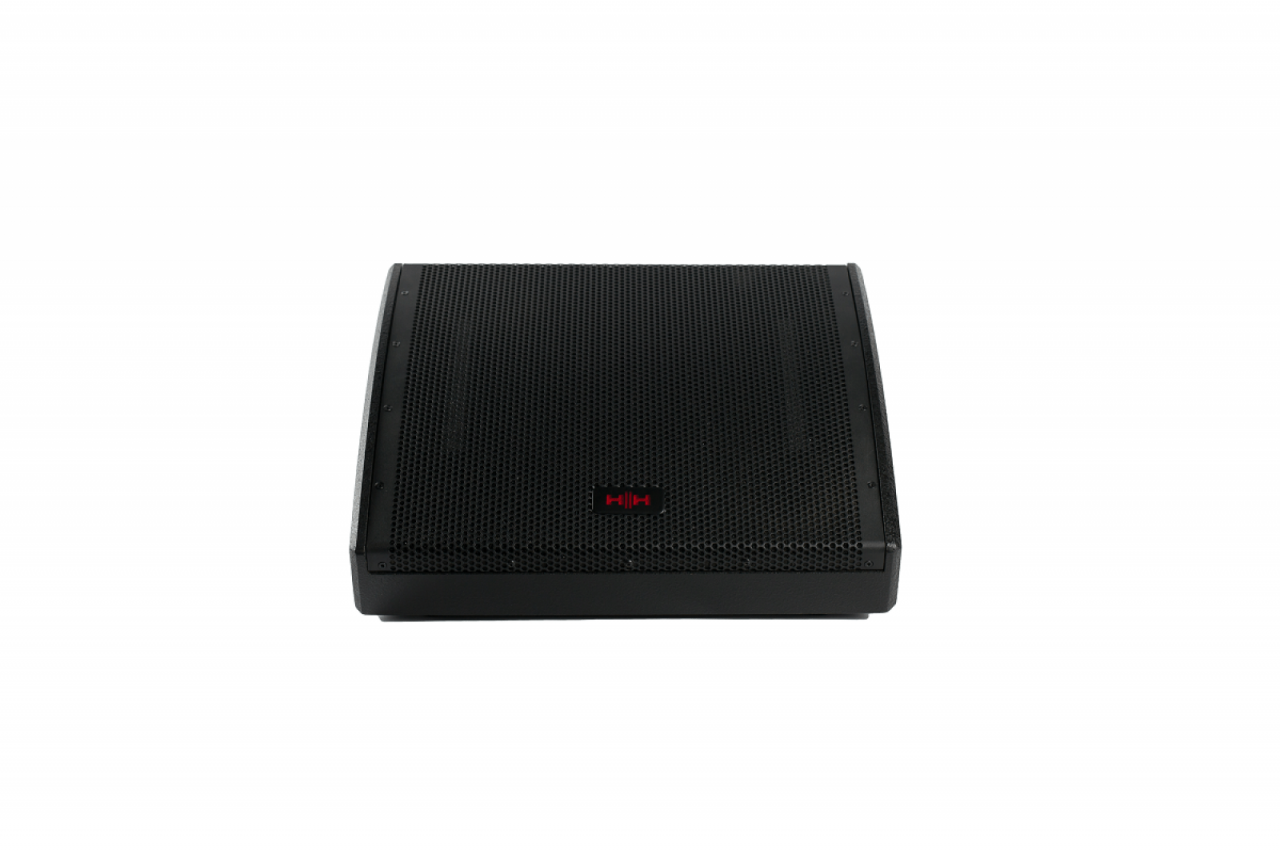

Active Monitor 12"
The Tensor TRM-1201 is a compact, active monitor; featuring a HH high-grade 12-inch driver with 1-inch compression driver. The ultra-efficient 1400 Watt Class D amplifier delivers optimal power output for demanding applications. Dual audio modes provide effective voicing options for versatile operation, whether that's live band, DJ or conference.
The 6.3mm / XLR combination input socket enables simple connection. Combined with a painted, light-weight solid plywood enclosure with 35mm pole mount for tripod mounting, the Tensor TRM-1201 is the perfect active monitoring solution.
| Features |
|---|
| • 1400 Was High Power Class D Amplifier |
| • 12-inch High Performance Driver with 1-inch High Frequency Compression Driver |
| • XLR, 1/4-inch Combinaon Input Socket with 2 Audio Modes |
| • Robust, Solid Plywood Enclosure with Integrated Handles |
| • 35mm Distance Pole Mount and Protecve Steel Grille |
| Applications |
|---|
| • Onstage performance monitoring |
| • Conference or public address |
| • Venue installaon |
| • Live music |
| • DJ |
| SPECIFICATIONS |
|---|
| Model: | TRM-1201 |
|---|
| System Type: | 12" Active Powered Stage Monitor, Bass Reflex |
|---|
| Frequency response | 50Hz - 20KHz (-10dB) (FOH mode) |
|---|
| 55Hz - 18KHz (-3dB) |
| LF Driver | 12-inch HH Driver |
|---|
| HF Driver | 1 inch HH Compression Driver |
|---|
| Max SPL 1m | 130 dB SPL |
|---|
| Coverage Angle | 80° x 80° |
|---|
| Crossover Frequency | 2.8KHz |
|---|
| AMPLIFIER |
|---|
| Power Rating | 350W RMS, 700W Continuous, 1400W Peak |
|---|
| Limiter | Dual Band Limiters |
|---|

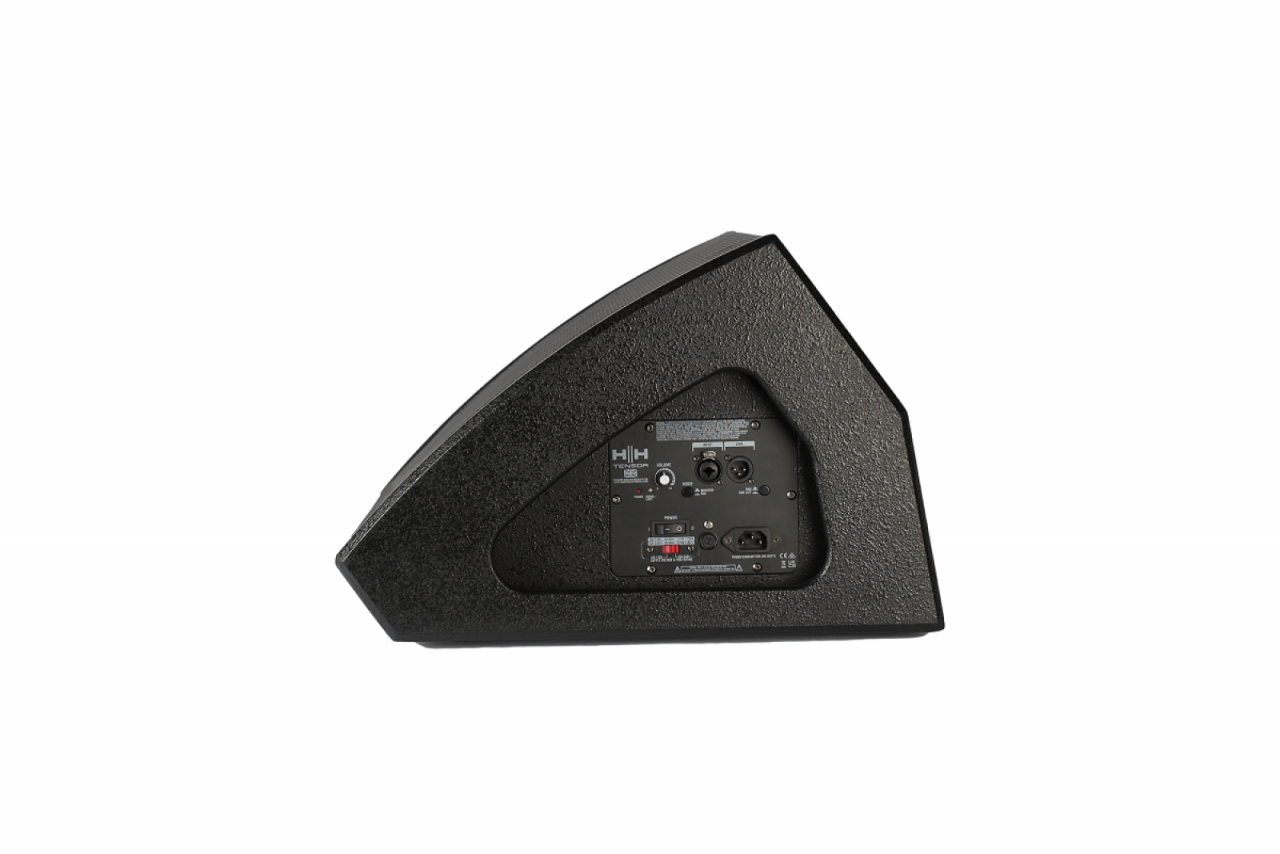

| Input Connector | Balanced Female XLR/6.3mm Jack Combi Socket |
|---|
| Output Connector | Balanced Male XLR with ground lift switch |
|---|
| Signal Indicators | Power, Signal Present, Clip Indicator |
|---|
| Controls | Volume, Monitor/FOH mode |
|---|
| AC Power | 100V-120V~/220-240V~+ 50/60Hz User Switchable |
|---|
| AC Power Consumption | 300W |
|---|
| AC Power Inlet | IEC C14 INLET |
|---|
| Enclosure |
|---|
| Cabinet: | Acoustically optimised Plywood cabinet with integrated carry handles |
|---|
| Finish: | Painted Black |
|---|
| Monitor Angle: | 35 |
|---|

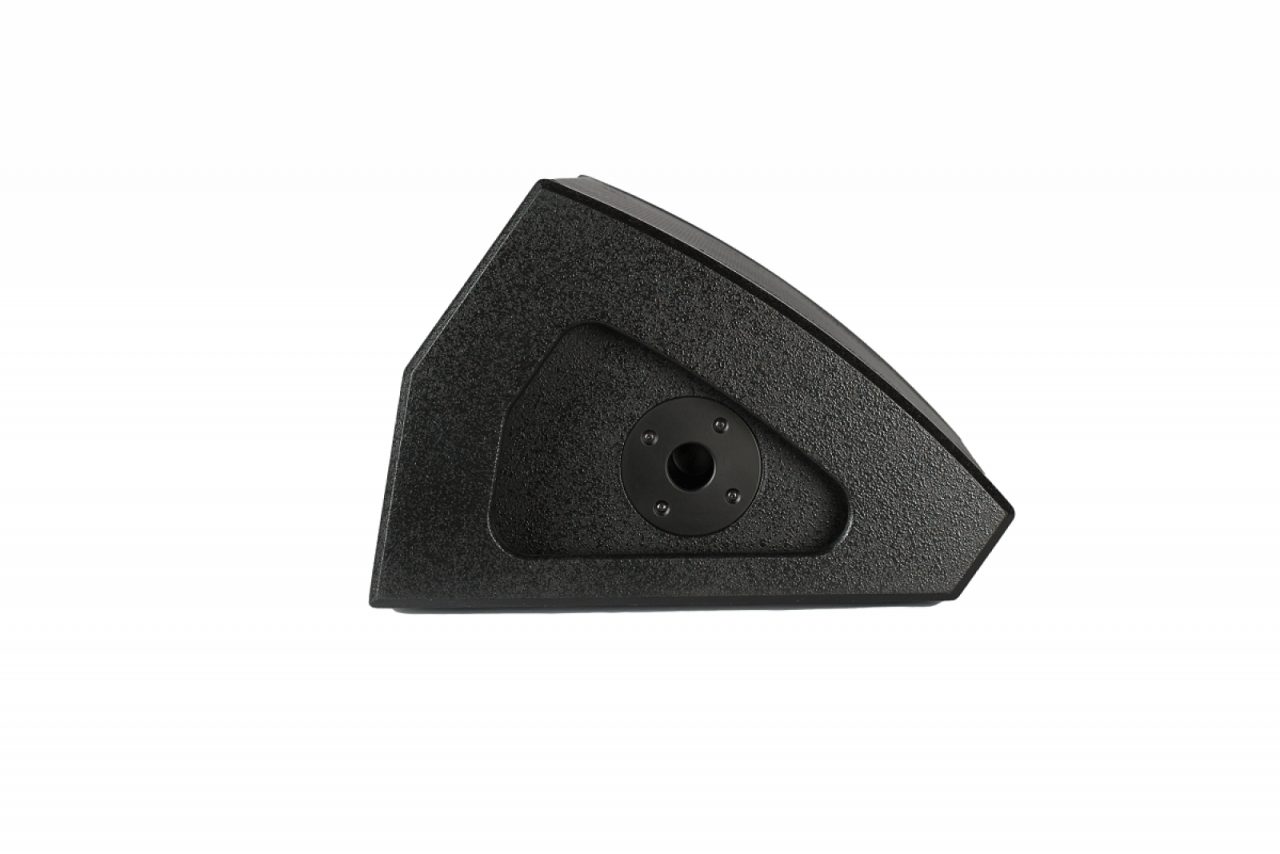

| Pole Mount: | 35mm Pole Mount Socket Included |
|---|
| Grille: | Rear reinforced heavy gauge steel grille with acoustic foam |
|---|
| Shipping Spec |
|---|
| Unit dimensions (HWD): | 340 x 510 x 500mm, 13.4" x 20.1" x 19.7" |
|---|
| Unit weight: | 17.7Kg, 39 lbs |
|---|
| Carton dimensions (HWD): | 605 x 540 x 470mm, 23.8" x 21.3" x 18.5" , 0.154 M3 |
|---|
| Packed weight: | 21Kg, 46.3 lbs |
|---|
