₱33,900.00

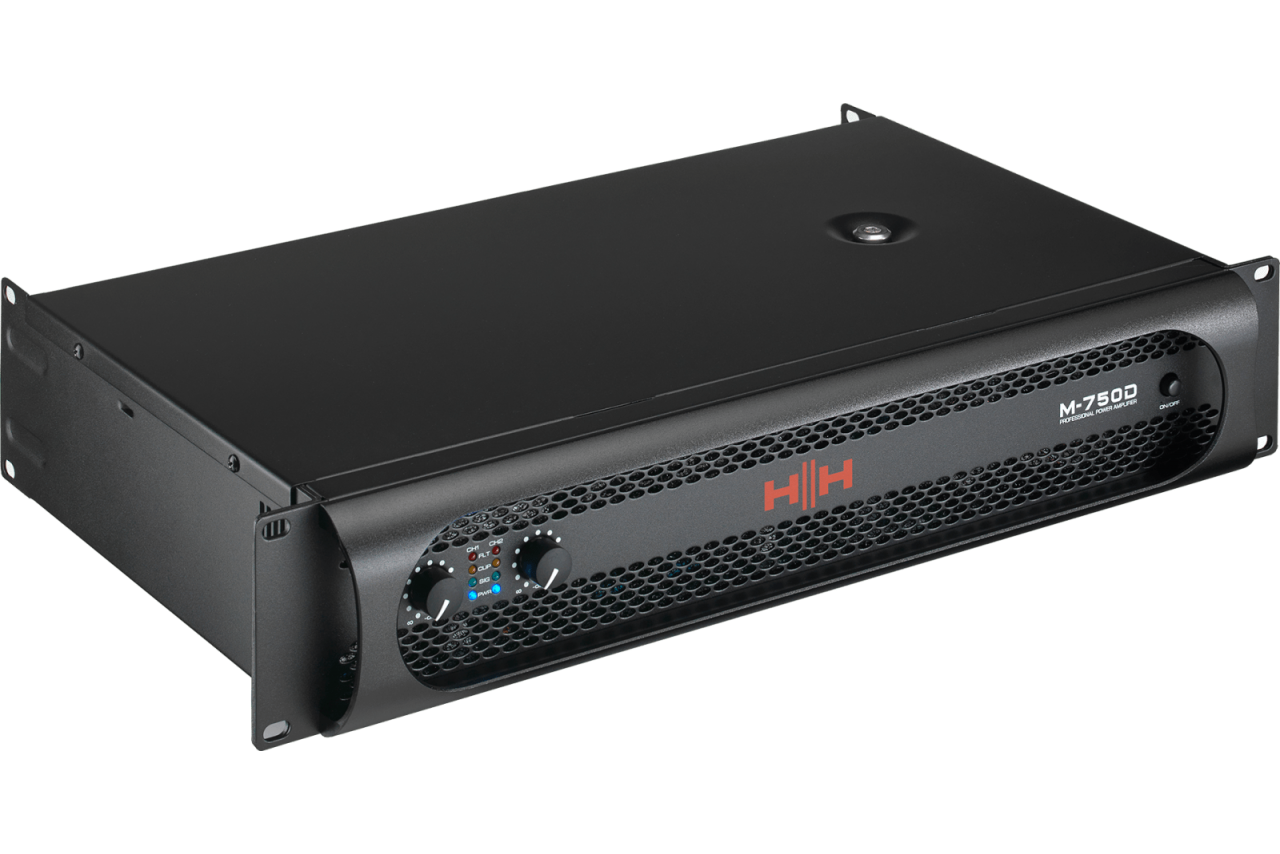

M-750D 2x750 Watts Power Amp Amplifier HH M-Series power amplifiers are high-power, 2U rack amplifiers designed to provide maximum performance for demanding applications. Three models are available all featuring heavy-duty low-noise toroida...
Availability: 2-3 Days
- Brand: HH Electronics
M-750D
2x750 Watts Power Amp
Amplifier HH M-Series power amplifiers are high-power, 2U rack amplifiers designed to provide maximum performance for demanding applications. Three models are available all featuring heavy-duty low-noise toroidal power supplies and rugged construction. Suitable for anywhere you need high-fidelity, high-power amplification Featuring high-quality balanced XLR inputs, user-selectable input sensitivity, SpeakON(®) Connectors, binding post outputs, status indicators, Twin volume controls and comprehensive protection circuits.
HH has over five decades of experience designing quality power amplifiers and indeed was one of the pioneers in this area.
| Key Features |
|---|
| - Two Channel Audio Power Amplifier. |
| - High Quality Heavy Duty, Toroidal Power supply. |
| - Heavy Gauge 2U chassis. |
| - Ultra reliable linear power stage. |
| - Comprehensive Protection System. |
| M-750D Specifications | |
|---|---|
| Output Power RMS : 8 Ohm Stereo | 2x500W |
| Output Power RMS : 4 Ohm Stereo | 2x750W |
| Output Power Bridge RMS : 8 Ohm Mono | 1500W |
| Direct Drive High Impedance | 70V (100V in Bridge) |
| Voltage Gain (8?) | 36dB |
| Controls | Volume Controls (per channel), Power switch, Input Sensitivity Switch, Bridge/Routing Mode Switch |
| Features | Soft start, comprehensive protection |
| Outputs | 2x locking SpeakON® connectors, 4x 4mm binding posts (with safety cover), 2x Balanced XLR link outs |
| System Type | 2U Professional Power Amplifier |
| Frequency Response | 20Hz - 20KHz (+0, -1dB) |
| THD+N | ?0.5% 20Hz-20kHz |
| Cooling | Variable Speed Fan, Air flow from front to rear |
| Protection | Soft start, VHF, RF, short circuit, over load, clip limit, over heat |
| PSU Type | 220-240V~ 10A Removeable IEC Power Cord C14 (3x1.5mm) / 100-130V~ 15A Removeable IEC Power Cord C20 (3x14AWG / 2mm) |
| Amplifier Type | Class H High Performance Professional linear design |
| Rear Panel | |
|---|---|
| Power Consumption | 500W Typical, 2700W Maximum |
| Shipping Dimensions / Weight | |
|---|---|
| Unit dimensions (HWD) | 88 x 482 x 239mm, 3.5 x 19 x 9.4" |
| Unit weight | 12.5Kg/pc, 27.6 lbs/pc |
| Carton dimensions (HWD) | 160 x 580 x 540mm, 6.3 x 22.8 x 21.3" |
| Gross Weight | 14.8Kg/pc, 32.6 lbs/pc |
