₱250.00

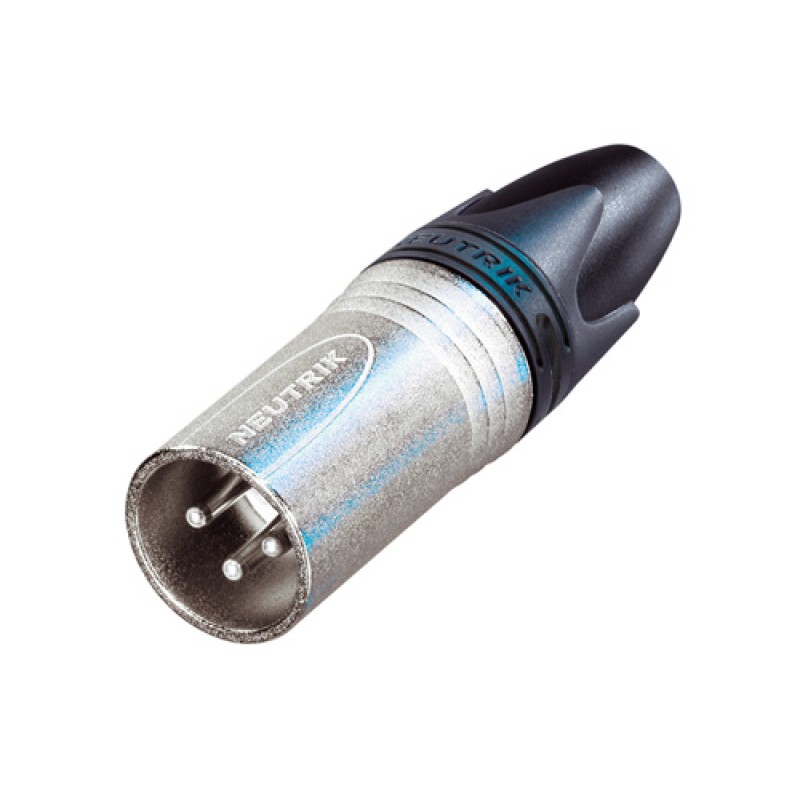

3-pole male cable connector with Nickel housing and silver contacts. The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable,
- Brand: Neutrik
- Product Code: NC3MXX
- Availability: In Stock
-
The item is available for purchase.
3-pole male cable connector with Nickel housing and silver contacts.
The next generation of the worldwide accepted standard of XLR cable connectors. The successor of the X series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.
Features
- Male connector with improved locking recess without "window", more stringent housing increases durability
- Improved chuck-type strain relief provides higher pull-out force and makes assembly easier and faster
- Boot with polyurethane gland gives high protection to cable bending stresses
- Colored rings and boots available for coding or identification
- Sleek and ergonomic design - valuable and handy
- Rugged zinc diecast shell, longlasting and dependable
- Internal thread on shell is well-protected against any damage
- Branded with unique hologram - guarantees genuine and authentic Neutrik product
| + Product | |
|---|---|
| Title: | NC3MXX |
| Connection Type: | XLR |
| Gender: | Male |
| + Electrical | |
|---|---|
| Capacitance between contacts: | ≤ 4 pF |
| Contact resistance: | ≤ 3 mΩ |
| Dielectric strength: | > 1,5 kVdc |
| Insulation resistance: | > 10 GΩ (initial) |
| Rated current per contact: | 16 A |
| Rated voltage: | < 50 V |
| + Mechanical | |
|---|---|
| Cable O.D. | |
| Insertion force: | ≤ 20 N |
| Withdrawal force: | |
| Lifetime: | > 1000 mating cycles |
| Wiresize: | max. 2.5 mm |
| Wiresize: | max. 14 AWG |
| Wiring: | Solder contacts |
| Locking device: | Latch lock |
| + Material | |
|---|---|
| Boot: | Polyurethan |
| Contact plating: | 2 µm Ag |
| Contacts: | Bronze (CuSn6) |
| Insert: | Polyamide (PA 6.6 30 % GR) |
| Locking element: | Zinc diecast (ZnAl4Cu1) |
| Shell: | Zinc diecast (ZnAl4Cu1) |
| Shell plating: | Nickel |
| Strain relief: | Polyacetal (POM) |
| + Environmental | |
|---|---|
| Flammability: | UL 94 HB |
| Standard compliance: | IEC 61076-2-103 |
| Protection class: | IP 40 |
| Solderability: | Complies with IEC 68-2-20 |
| Temperature range: | -30 °C to +80 °C |
