₱120.00

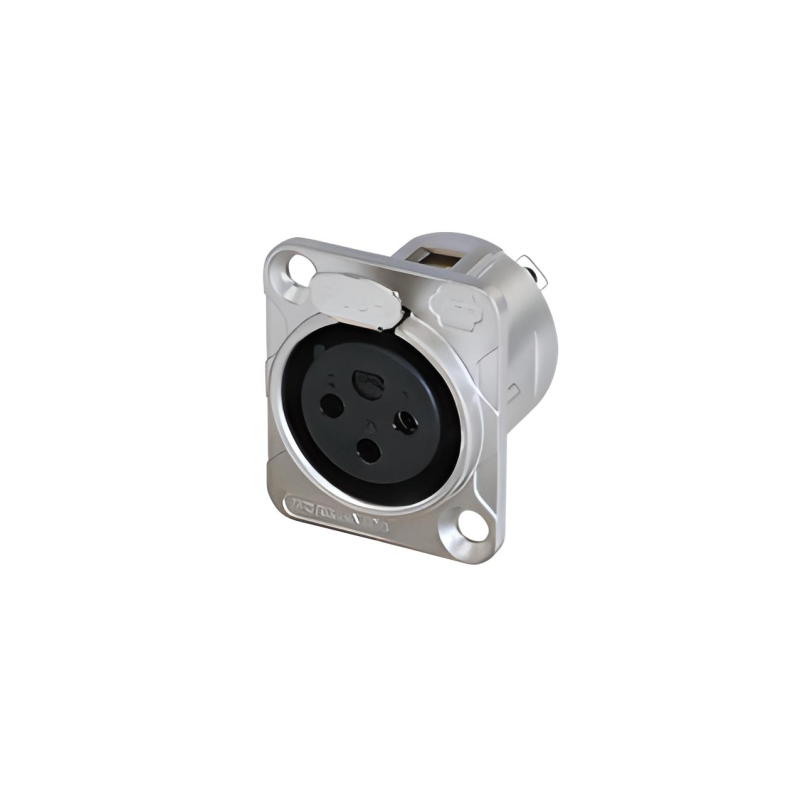

3 pole female XLR receptacle with solder lugs + Product Title: RC3FDL Connecti
- Brand: REAN
- Product Code: RC3FDL
- Availability: In Stock
-
The item is available for purchase.
3 pole female XLR receptacle with solder lugs
| + Product | |
|---|---|
| Title: | RC3FDL |
| Connection Type: | XLR |
| Gender: | female |
| + Electrical | |
|---|---|
| Contact resistance: | ≤ 5 mΩ |
| Rated Current: | ≤10 A |
| Insulation resistance: | >1 GΩ |
| + Mechanical | |
|---|---|
| Lifetime: | > 1,000 Mating Cycles |
| Insertion and Withdrawal Force: | ≤20N - 20 N |
| + Material | |
|---|---|
| Ground Contact: | Bronze |
| Jack: | Bronze |
| Housing: | Zinc |
| Latch: | Steel |
| Spring: | Steel |
| Plastic Body: | PA6+30%GF |
| Ground Contact: | Tin and Cer |
| Jack: | Tin and Cer |
| Housing: | Nickel Plating |
| Latch: | Nickel Plating |
